Report File
At this point, it is not possible to create a report in the Lowcode itself. This functionality only refers to uploading a report file.
How to access
Access the feature by navigating the menu Lowcode > Resources > Report upload.
Preconditions
Not applicable
Filters
- The following filter enables the user to restrict the participation of items in the standard feature listing, making it easier to find the desired items:
- Keyword or enter
Figure 1 - Report File Search Screen
Items List
- The following cadastral fields are available to the user to make it easier to identify the desired items in the standard feature listing: Resource, Name, Description, and Version.
Figure 2 - Report File Listing Screen
Filling in the Registration Fields
ATTENTION:
You can not create a report itself in Lowcode .
This functionality only refers to uploading a report file.
- The version field is auto-incremented by the system. Enter the name of the report, a description, and the project folder on the server. The engine field is filled automatically according to the file format. Currently, Jasper's jrxml format is only accepted.
- Finally, upload the report file.
- When you include a report file, the system automatically generates a record in the report configuration screen.
- Click on "Save" to store the image. Click on "Search" to return to the previous screen.

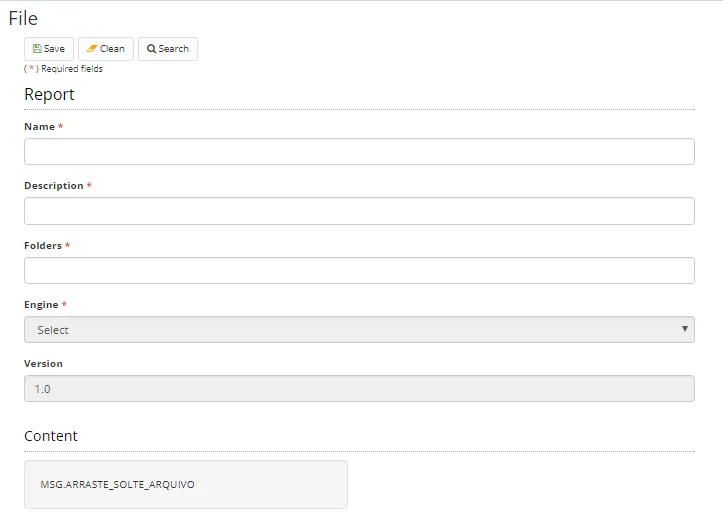

Figure 3- Report file master screen
- To edit a created item, select the desired item, click on "Edit" (the current version or the previous version), make the changes, and click on "Save".
- To view an item, select the item and click on "View".
- To remove a created item, select the item you want, click on "Remove", and confirm the deletion.
