Webservices Lowcode

This document gathers the minimum knowledge necessary for the adequate use of the services via Rest.

URL	Description	Parameters	Return
/startWithMap/{name}	Starts an ESI flow by name	name: Name of the registered flow	Representation of the registered flow object
/instance/initialize/{processInstanceId}	Retrieve the values of a process instance	processInstanceid: ID of the process instance	Representation of the registered process instance
/instance/suspend/{processInstanceId}	Suspends a process instance	processInstanceid: ID of the process instance	Representation of the registered process instance
/instance/restart/{processInstanceId}	Restarts a process instance	processInstanceid: ID of the process instance	Representation of the registered process instance
/instance/reopen/{processInstanceId}	Reopens a process instance	processInstanceid: ID of the process instance	Representation of the registered process instance
/userTask/{userTaskId}	Retrieves an user task	userTaskId: ID of the created user task	Representation of the registered process instance
/rule/executeWithMap/{name}	Executes a business rule	name: Name of the registered business rule	Representation of the executed business rule

request body: JSON Object with the variables for the flow
request body:JSON Object with the variables for the business rule

Table 1 - Specification of APPLICATION PROGRAMMABLE INTERFACES (API)

SPECIFIC GUIDELINES FOR REST API ACCESS

In the following sections, each type of intended use for the services available via Rest is detailed in the CITSMart Enteprise Lowcode product.

Authentication

To use the APIs, the client must be logged into Lowcode . To do this, simply get a token from the authentication service and inject that token into the header of each REST request with the authentication-token identifier. Authentication is done through the POST /cit-esi-web/rest/security/token service, passing a JSON object with the username and password attributes in the body.

Figure 1 - Example using the Chrome Restart Client plugin

Business Objects REST API

Each business object provides a set of REST services that can be consumed from the URL /cit-esi-web/dynamic/{application name}/{business object name}. These are basic services for creating, updating, listing and deleting the business object, as well as a getStructure method that returns the metadata of the business object. Each SQL created in the business object can also be called in method form. Following are examples using the hotel business object of the hotels application. For each request, the authentication-token obtained in the login service must be provided. The url should end with ".json".

Inclusion of business object

HTTP verb: POST
URL: /cit-esi-web/rest/dynamic/{application name}/{business object name}.json
Body: JSON containing the attributes of the business object record to be included

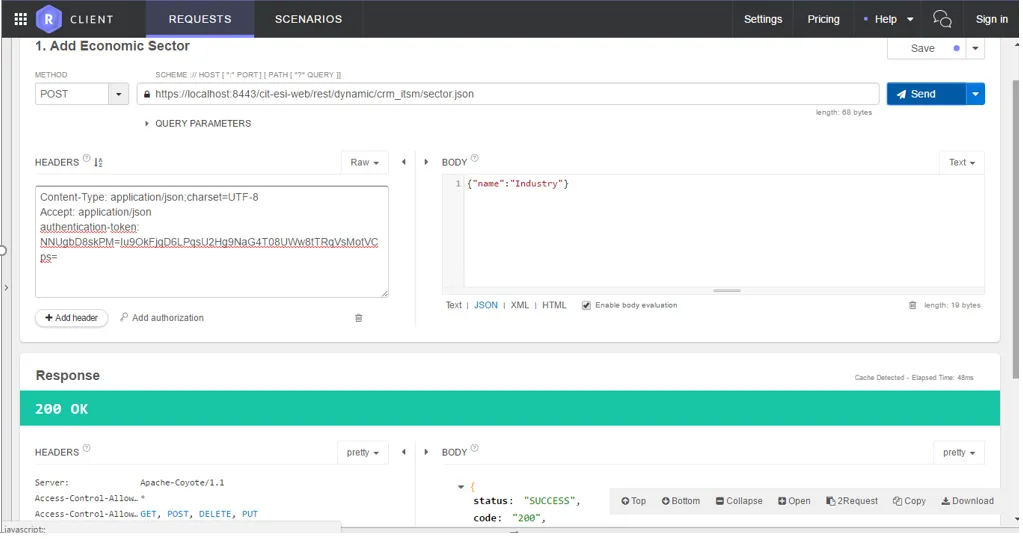

Figure 2 - Inclusion of business object

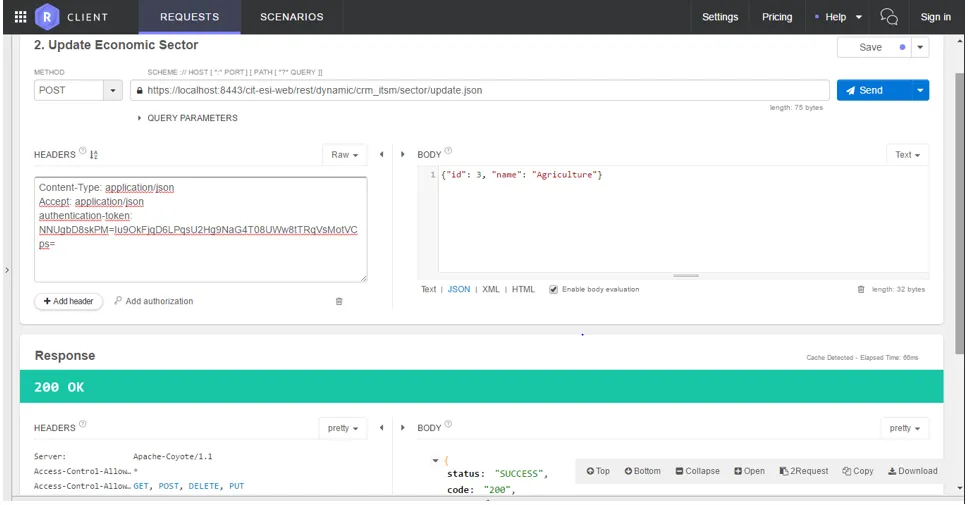

Business Object Change

HTTP verb: POST
URL: /cit-esi-web/rest/dynamic/{application name}/{business object name} /update.json
Body: JSON containing the attributes of the business object record to be changed

Figure 3 - Change of business object

Business Object Deletion

HTTP verb: POST
URL: /cit-esi-web/rest/dynamic/{application name}/{business object name}/remove.json
Body: JSON containing the primary key of the business object record to be deleted

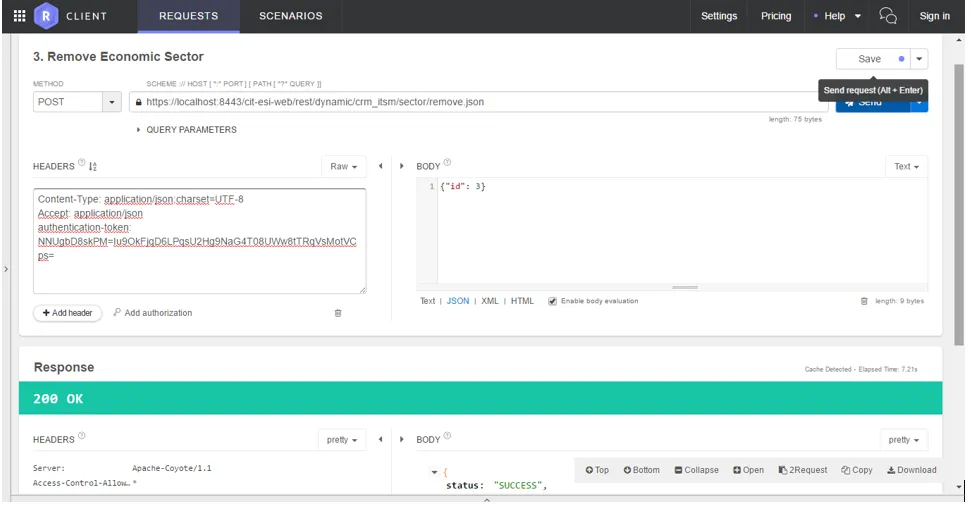

Figure 4 - Business Object Deletion

Listing of business objects

HTTP verb: GET
URL: /cit-esi-web/rest/dynamic/{application name}/{business object name}.json

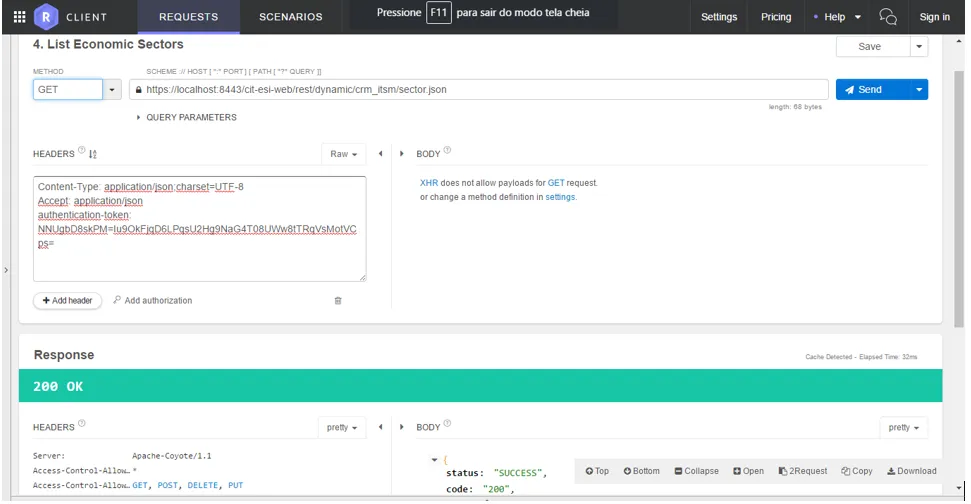

Figure 5 - Listing of business objects

Business object recovery by primary key

HTTP verb: POST
URL: /cit-esi-web/rest/dynamic/{application name}/{business object name}/restore.json
Body: JSON containing:
- The primary key of the business object record to be deleted
- Attribute boolean findManyToOne, indicating whether the system should retrieve many relationships for one of the object
- Boolean findOneToMany attribute, indicating whether the system should retrieve one-to-many relationships from the object

Figure 6 - Recovery of business object by primary key

Retrieving the structure of the business object

HTTP verb: GET
URL: /cit-esi-web/rest/dynamic/{application name}/{business object name}/getStructure.json

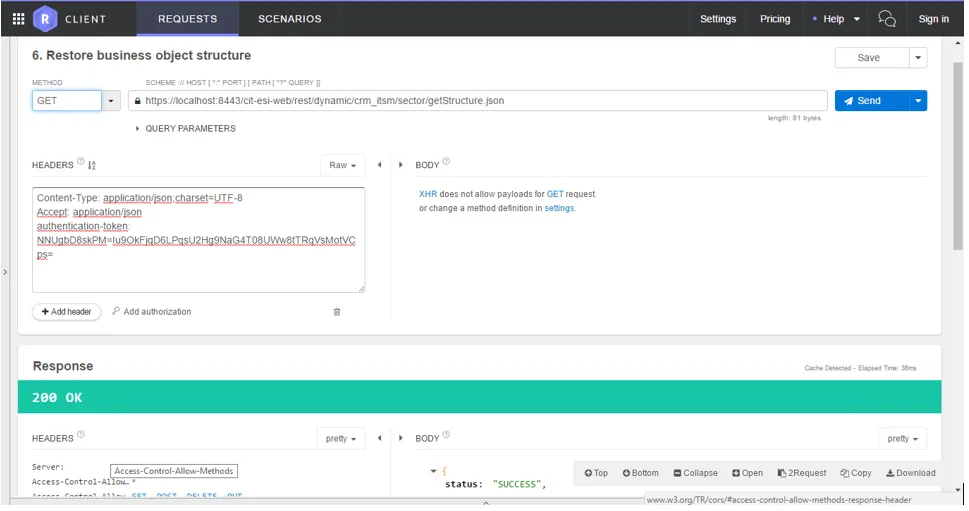

Figure 7 - Recovery of the structure of the business object

SQL Execution of the Business Object

HTTP verb: POST
URL: / cit-esi-web / rest / dynamic / {application name} / {business object name} /list.son
Body: JSON containing:
- SQLName attribute with the name of the SQL to be executed
- JSON dynamicModel attribute containing the expected parameter values in SQL
- Attribute boolean findManyToOne (optional), indicating whether the system should retrieve many relationships for one of the object
- Attribute boolean findOneToMany (optional), indicating whether the system should retrieve one-to-many relationships from the object

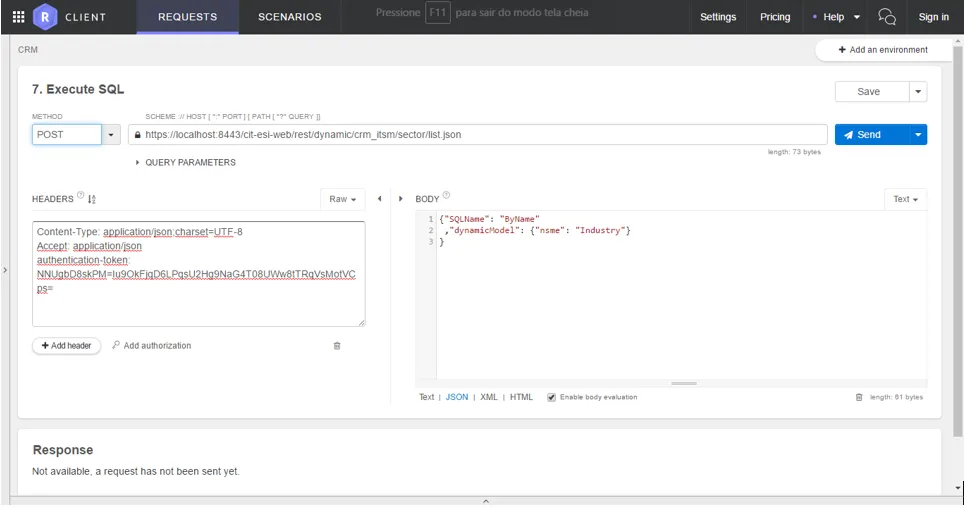

Figure 8 - SQL execution of the business object

Execution of ESI streams

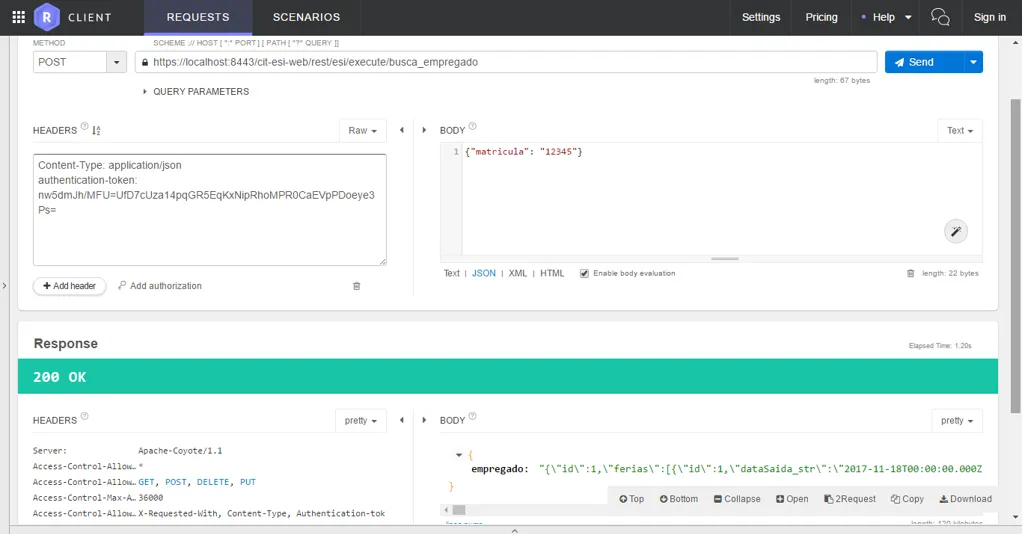

Any ESI stream can be executed via REST using the POST service /cit-esi-web/rest/esi/execute/{stream name}. For each request, the authentication-token obtained in the login service must be provided. In the body of the request a JSON containing the input variables required to execute the flow must be provided. The example below performs the job-search flow, providing the "12345" enrollment as the input variable of the stream. The stream returns the "employee" JSON object.

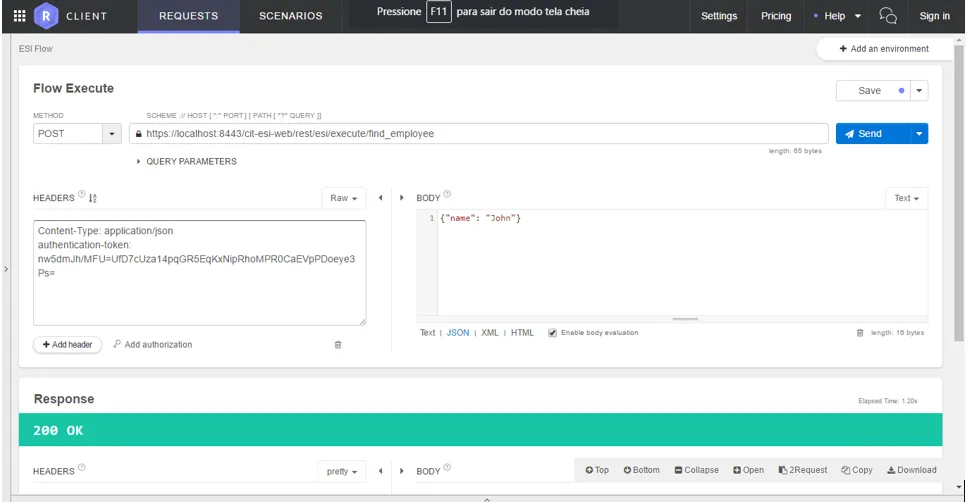

Figure 9 - Example of running ESI streams
